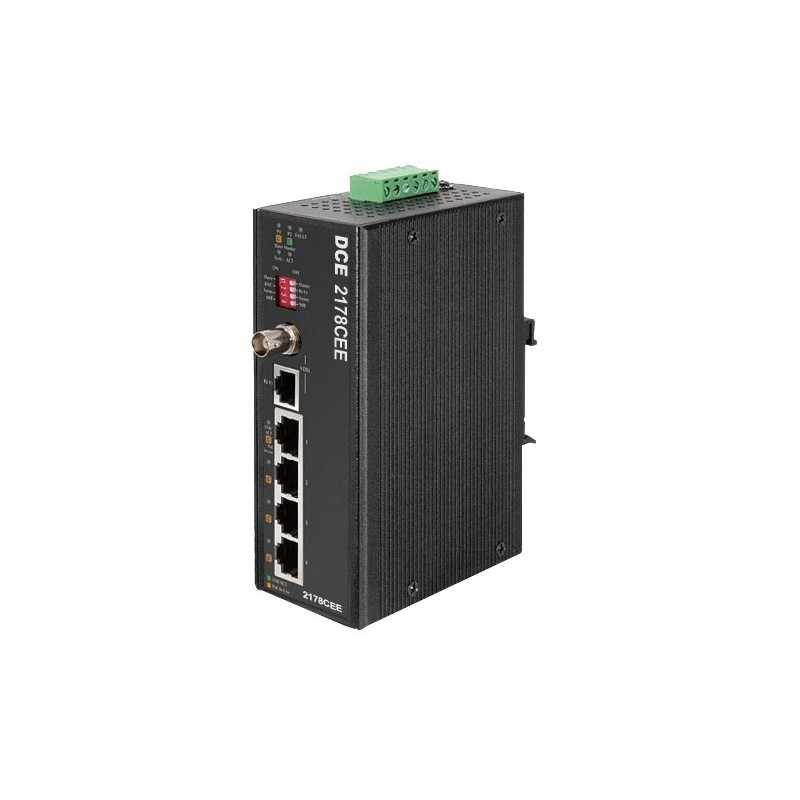

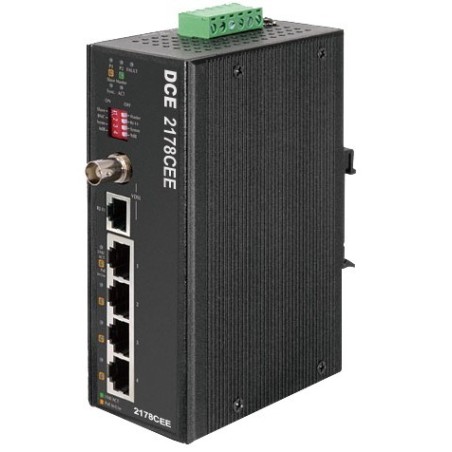

2178MPEE Ethernet Extender 2-pack
search
  • 2178MPEE Ethernet Extender 2-pack

2178MPEE Ethernet Extender 2-pack

$1,599.00
Tax included

Multi-port ethernet extender

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

The Data Connect DCE/2178MPEE Industrial Grade Multi Port Ethernet Extender is a one 4-port 10/100Base-TX switch and one 2-wire Ethernet port used to extend Ethernet up to 300 meters (984ft) at 50 Mbps over two existing voice grade copper wires. A simple single switch allows for a choice between local or remote setting. Thus select local for side A of the circuit and select remote for side B of the circuit. The DCE/2178MPEE is fully managed via SNMP, Web Browser, and Telnet or console port and is designed to integrate 10/100Mbps networks into VDSL backbone. The DCE/2178MPEE supports advance features such as 802.1Q VLAN, MAC-based Trunking, IPMulticast IGMP Snooping, and Rapid Spanning Tree for Redundancy, QOS foe priority Queuing, and Port Mirroring. The DCE/2178MPEE functions at temperatures ranging from -40°C to 75°C (-40°F to 167°F) and tested for functional operation at -40°C to 85°C (-40°F to 185°F). The DCE/2178MPEE complies with NEMA TS1 & TS2 that meets with Environmental requirements for Traffic Control equipment and complies with IEC61000-6-1 EMC, a Generic Standard Immunity for the industrial environment.

Features

  • Complies with NEMA TS1 & TS2 Environmental requirements Traffic Control equipment
  • Complies with IEC61000-6-2 EMC Generic Standard Immunity for industrial environment
  • Ethernet Port: 10/100Mbps – Full/Half duplex, Auto-Negotiation, Auto-MDI/MDI-X
  • Ethernet Extender (RJ11 and Terminal) Port: Symmetrical on the VDSL, High speed, Full-duplex, 50Mbps communication link over existing copper Telephone Line
  • -40°C to 75°C ( -40°F to 167°F) operating temperature range
  • 1000Mbps –Full Duplex, 10/100Mbps-Full Duplex , Auto-Negotiation, Auto-MD/MDX
  • RS232 Console, Telnet, SSL/SSH, SNMP V1, V2C, & V3, RMOM, Web Browser and TFTP Management
  • Data Connect Proprietary ‘a-ring’ support for Network Redundancy; recovery time < 15ms
  • IEEE802.1w RSTP, IEEE802.1s MSTP and IEEE802.1D STP compatible
  • Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
  • IP Multicast Filtering through IGMP snooping V1, V2, &V3
  • IEEE802.1P QOS with four priority queues
  • MAC-based Trunking with automatic link fail-over
  • Supports Command Line Interface in RS232 Console
  • Supports IEEE802.1X Security
  • Bandwidth Rate Control
  • Per-port programmable MAC address locking
  • Up to 24 Static Secure MAC addresses per port
  • Port Mirroring
  • Full wire-speed forwarding rate
  • Redundant Power Input with Terminal Block and DC Jack
  • Hardened aluminum case
  • Supports NTP

Application – Multi Port Point-to-Point

Specifications

Technology

Standards:
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX, Ethernet over VDSL, IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x

Forward and Filter Rate:
14,880pps for 10Mbps, 148,810pps for 100Mbps

Packet Buffer Memory:
2M bits

Processing Type:
Store-and-Forward, Half-duplex back-pressure and IEEE802.3x full-duplex flow Control
Address Table Size: 8192 MAC addresses Power

Input:
Input Voltage: 12 to 48VDC (Terminal Block); 12VDC (DC jack)

Power Consumption:
11W Max. 0.92A@12VDC, 0.46A @ 24VDC

Overload Current Protection:
Present

Reverse Polarity Protection:
Present

Mechanical
Casing:
Aluminum case, IP 30

Dimensions:
60mm (W) x 125mm (D) x 145mm (H), 92.36” (W) x 4.92” (D) x 5.7” (H)

Weight:
1.1kg (2. 42kg)

Installation:
Din-Rail

Interface
Ethernet Port:

10/100Base-TX: 4 ports

Ethernet Extender Ports:
RJ-11 and Terminal Block port: 1port, Speed: 1/3/5/10/15/20/25/30/40/50 Mbps, Distance: 1900meters (6,232ft) Cable: Telephone line 24 AWG (0.5mm diameter, 1-piar wire) or larger

Console Port:
Port: One DB9 RS-232 port
Per Unit: Power Status (Power 1, Power 2, & Power 3), Per Port: 10/100TX: Link/Activity, Speed Extender Port: Link: DIP Switch:
One DIP switches: Local (CO) or Remote (CPE)

Alarm Contact:
One relay output with current 1A@24VDC

Environment

Operating Temperature:
-40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity:
5% to 95% (non-condensing)

Regulatory Approvals:
ISO:

Manufactured in an ISO9001 facility

EMI:
FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3

EMS:
EN6100-6-2, EN6100-4-2 (ESD Standard), Contact: + / 6KV; Criteria B, Air: + / – 8KV; Criteria B
EN6100-4-3 (Radiated RFI Standards), 10V/m, 80 to 1000MHz; 80% AM Criteria A
EN6100-4-4 (Burst Standards), Signal Ports: +/- 4KV; Criteria B D.C. Power Ports; +/- 4KV; Criteria B
EN6100-4-5 (Surge Standards), Signal Ports: +/-1KV; Line-to-Line; Criteria B, D.C. Power Ports: +/- 0.5KV; Line-to-earth; Criteria B
EN6100-4-6 (Induced RFI Standards) Signals Ports: 10Vrms @0.15~80MHz; 80% AM Criteria A D.C. Power Ports: 10Vrms @0.15~80MHz; 30A/m @ 50, 60Hz; Criteria A

Environmental Test Compliance:
IEC60068-2-6 FC (Vibration Resistance)
5g @ 10~150KHz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall), 1M (3.281ft)

Ordering Information

DCE/2178MPEE
DCE/2178MPEE-2Pk
DCE/2178MPEE-DC12J
DCE/2178MPEE-DC12TB
DCE/2178MPEE-DC48TB

DCE/2178MPEE-2PK
